铣刀命名规则

1、铣刀类型和主偏角

Milltype and cuttingedge angle

FMxx Face milling(xx:45°/60°/75°/88°)

HFxx High feed milling(xx:10°/12°/13°/15°/20°)

SM90 Shoulder milling90°

SF90 Slot&Face milling90°

PM00 Profile milling

PG10 Plunge milling 10°

CMxx Chamfer milling(xx:30°/45/60°/75)

LE90Longedge milling90玉米铣刀

FF90 Fine face mill 90°

2、铣刀盘的直径Milldiameter

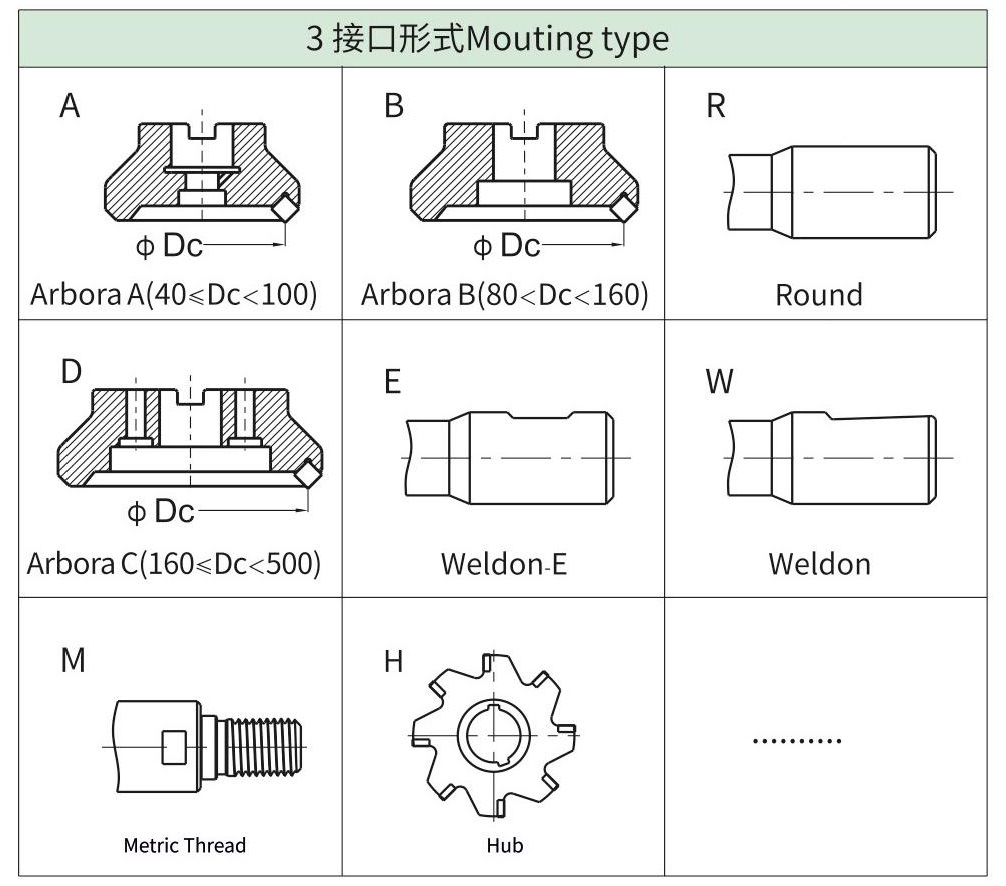

4接口尺寸Moutingsize

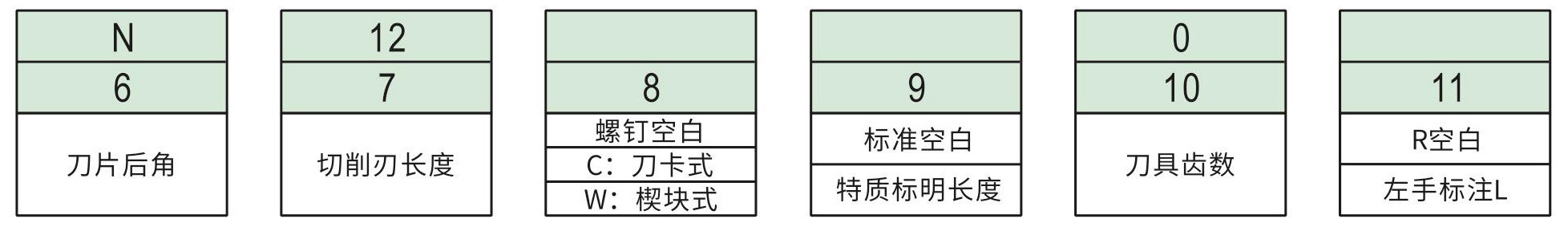

8、可选编号Optional number

空白（blank）螺钉压紧型式Screw clamping

W(Wedge)模块式设计Wedge design

C（Cartridge）带刀夹的设计Cartridge design

9、可选编号Optional number

空白(blank)标准长度 Standard length

L(length)特殊长度 Special length

10、齿数Toothnumber

槽铣刀则为切槽的宽度Slot width only for slotting mill

11、可选编号Optional number

空白(blank)标准长度

L(left）左手设计
